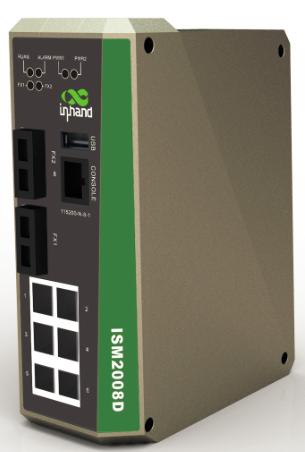

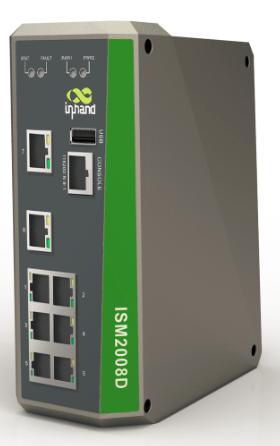

ISM2008D - Comunicaciones Industriales

Key Features
ŒŒ

ISM2008D series products are of 8 ports DIN-rail Managed Industrial Ethernet Switch, especially designed for applications in the field of electric power, transportation, industrial control and in other severe industrial environment. This series, which could work normally under the temperature between -40 and 85°C, has integrated convenient security management features, enterprise-class high-speed forwarding performance, strong cabinet, protected industrial circuit and other industrial features. All this series products support ITU-T G.8032v2 protocol (self-recovery time less than 5ms), iRing protocol, STP/RSTP ring network redundancy protocol and enhanced network management protocol, all of which could satisfy reliability requirement under severe industrial environment.

Interface
ŒŒ - RJ45 port 10/100Base-T(X) self-adaptive RJ45 port, support full / half-dual and adaptive MDI/MDI-X
ŒŒ - FX fiber port 100Base-FX port (SC/ST/FC port)
ŒŒ - Console port RS232(RJ45 port)
ŒŒ - LED indication PWR1, PWR2, STAT, FAULT, FX

Mechanical structure
ŒŒ - Housing IP40 protection class, fully enclosed and seamless type metal cabinet, PCB protection coating available
- Dimensions (WxHxD) 62mm ×162mm ×127.5mm
ŒŒ - Weight 0.88 kg
ŒŒ - Heat dissipation mode Fanless heat dissipation
- Installation mode Guide rail and wall mounting (kit optional)

Power source
- Input voltage 24VDC(12~48VDC), Support redundant input (standard specification), 48VDC(36~72VDC), support redundant input (optional)
- Interface terminal 5-pin pluggable screw connection terminal
- Overload protection Available
- Reverse polarity protection Available
- Power consumption+6w

Working environment
- Working temperature -40 ~ +85 °C
- Storage temperature -40 ~ +85 °C
- Relative humidity 5%~95% (free of condensation)

Switching performance
-ŒŒ Forwarding inherent time delay +4us
-ŒŒ Backplane bandwidth 1Gbps
-ŒŒ MAC address table 8k
-ŒŒ Data package buffer 1Mbit

Function features
-ŒŒ Ethernet standard: IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-T(X)and 100Base-FX, IEEE 802.3x for flow control,IEEE 802.1D for Spanning Tree Protocol, IEEE 802.1D for MAC Bridges, IEEE 802.1D for GMRP, IEEE 802.1w for Rapid STP, IEEE 802.1Q VLAN Tagging, IEEE 802.1p for Class of Service, IEEE 802.1X for access control base on port and MAC address, IEEE 802.3adis suitable for Port Trunk with LACP
-ŒŒ Industrial protocol conversion Support Modbus/TCP, OPC
-ŒŒ Multicast features: The maximum number of IGMP group is 256, Support GMRP, IGMP Snooping multicast filtering
-ŒŒ Port mirroring Support multiple port mirroring function
-ŒŒ Broadcast storm suppression Support
-ŒŒ QoS priority queue 4
-ŒŒ VLAN function: Port Based VLAN, The max number of VLAN is 255, VLAN ID range:1~4094, Support GVRP

High reliability
-ŒŒ Ring protocol: Support base on international standard ITU-T G.8032v2 ring network protocol (recovery time +5 ms), Support iRing protocol, Support STP RSTP protocol, Support single ring, double ring, tangent ring, cross ring
-ŒŒ LLDP Support layer 2 link status information detection
-ŒŒ Link aggregation Support multiple link aggregation base on LACP function

Device maintenance
-ŒŒ Management way Support command line interface(CLI) WEB configuration way, Support Telnet SSH login, Support RADIUS TACACS+
-ŒŒ Network manage protocol: Support SNMPv1/v2c/v3, Support RMON
-ŒŒ Alarm output: Rated capacity:5A 250V AC,5A 30V DC, Maximum permissible power:1250VA,150W, Maximum permissible voltage:380V AC,125V DC, Maximum permissible current:5A AC,5A DC
-ŒŒ Email alarm output: Support email alarm output, Support email sever address, port, username and password configuration, Support encryption output of alarm information, Support multiple alarm email destination address
-ŒŒ System status display, Support CPU load statistics, Support memory usage status display, Support host online time status display, Support firmware version information display, Support the model serial number host name display
-ŒŒ Backup/Restore: Support import/export backup configuration file and restore the factory settings.
-ŒŒ System log Support local log and remote log server function, convenient to troubleshoot
-ŒŒ System upgrade Support local/remote firmware upgrade function
-ŒŒ Installation Support DIN-rail(standard), wall mounting (optional)
-ŒŒ MTBF 35 years

Industrial standard
-ŒŒ Electromagnetic compatibility IEC 61000-4-2(Electrostatic discharge) class 4, IEC 61000-4-3(Radiated, radio-frequency, electromagnetic field) class 4, IEC 61000-4-4(Electrical fast transient/burs) class 4, IEC 61000-4-5(surge) class 4, IEC 61000-4-6(Immunity to conducted disturbances, induced by radio-frequency fields) class 3, IEC 61000-4-8(Power frequency magnetic field) class 5
-ŒŒ Impact IEC60068-2-27
-ŒŒ Free fall IEC60068-2-32
-ŒŒ Vibration IEC60068-2-6

Warranty period
-ŒŒ Warranty period 5 years
