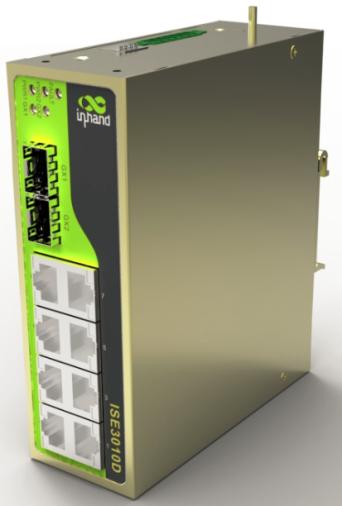

ISE3010D - Comunicaciones Industriales

Series Unmanaged Industrial Ethernet Switch
Key Features
ŒŒ

ISE3010D series products are of 10 ports DIN-rail Unmanaged Industrial Ethernet Switch, especially designed for applications in the field of electric power, transportation, industrial control and in other severe industrial environment. It integrates wide-range temperature and voltage design, enterprise-class high-speed forwarding performance, strong cabinet, protected industrial circuit and other industrial features, is capable of plug and play, and can satisfy reliability requirement under harsh industrial environment.

Interface
ŒŒ - RJ45 electric port 10/100Base-T(X) self-adaptive RJ45 port
ŒŒ - GX port 1 GX SFP slot
ŒŒ - LED indication PWR1,PWR2,STAT,FAULT,GX1

Mechanical structure
ŒŒ - Housing IP40 protection class, fully enclosed and seamless type metal cabinet, PCB protection coating available
- Dimensions (WxHxD) 45mm x 132.6mm x 112mm
ŒŒ - Weight 0.6 kg
ŒŒ - Heat dissipation mode Fanless heat dissipation
- MTBF 35 years
- Installation mode DIN- rail and wall mounting (kit optional)

Power source
- Input voltage 24VDC(12~48VDC), support redundant input
- Interface terminal 7-pin pluggable screw connection terminal
- Overload protection Available
- Reverse polarity protection Available
- Power consumption -7.1w

Working environment
- Working temperature -40 ~ +85 °C
- Storage temperature -40 ~ +85 °C
- Relative humidity 5%~95% (no condensation)

Switching performance
- Forwarding inherent time delay <4μs
- Backplane bandwidth 5.6Gbps
- MAC address table 8k
- Data package buffer 1Mbit

Function features
- Ethernet standard: IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-T(X)and 100Base-FX, IEEE 802.3x for flow control
Port flow control: Supporting IEEE 802.3 x flow control and backpressure type flow control, capable of enabling/disabling flow control via dip switch
Relay alarm output: Rated control capacity: 2A@30V DC, Maximum allowable power: 60W, Maximum allowable voltage: 220V DC, Maximum allowable current: 2A DC
- Dip switch: Supporting enabling/disabling of broadcast storm protection via hardware dip switch, flow control and port connection interruption alarm

Industrial standard
- Electromagnetic compatibilitym: IEC 61000-4-2(Electrostatic discharge) class 3, IEC 61000-4-3(Radiated, radio-frequency, electromagnetic field) class 3, IEC 61000-4-4(Electrical fast transient/burs) class 3, IEC 61000-4-5(surge) class 3, IEC 61000-4-6(Immunity to conducted disturbances, induced by radio-frequency fields) class 3, IEC 61000-4-8(Power frequency magnetic field) class 4
- Impact IEC60068-2-27
- Freefall IEC60068-2-32
- Vibration IEC60068-2-6

Warranty period
-ŒŒ Warranty period 5 years
